IP 65 OLED Weighing Controller For Batcching And Blending Applications (HK320)
Product Description:
The HK320 is intended for high precision weighing systems,
accurately realizing the conversion, display and transmission of
weigh signals. The weighing controller delivers diverse
connectivity options and compatibility with all analog output load
cells. It is available in different versions: Panel-type,
dust-proof, and explosion-proof enclosures(explosion-proof
certification: Exd IIB T6Gb) ,suitable for various installation
scenarios. Besides, It has multilingual menu and 4 simple buttons
for intuitive operation.
Brans are always devoted to deliver satisfied and favourable
services to each our clients to meet their specific needs. We
deeply understand that each apllication is different and requires a
customized response.To make sure
providing the best solution, the product can be adapted to meet
customer requirements.
Features:
Specifications:
| Display | OLED yellow-green full dot matrix display, display area 128*64mm |
| Display resolution | 100,000 |
| Weighing platform | 1pc analog platform |
| Min.input interval | 0.6μV/d |
| Input Load | Drive up to 1~6 load cells (350Ω) |
| Communication port(standard type) | RS485 or RS232 interface two options I/O: one input and four outputs |
| Communication port(optional) | Inputs and outputs/interfaces: 4 inputs and 8 outputs Analog output: 0~5V, 0~10V, -5V~+5V,- 10V~+ 10V, 0-20mA, 4~20mA,0~24mA Protocol:Continue type, MODBUS-RTU,PROFIBUS-DP |
| A/D Conversion rate | 200Hz |
| Excitation voltage | 5VDC |
| Power supply | +24VDC (± 15%), power <6W |
| Keyboard | 4 touch buttons |
| Operation temp. range | - 10°~ 40°C (14°~ 104 °F) Humidity: 10% ~ 95%; non-condensing |
| Dimension(L*W*H) | 110mm*116mm*65mm |
| Material | Stainless Steel housing with OLED display and operator panel |
| IP Class | IP 65 |
Screen and Keyboard:
Interface:

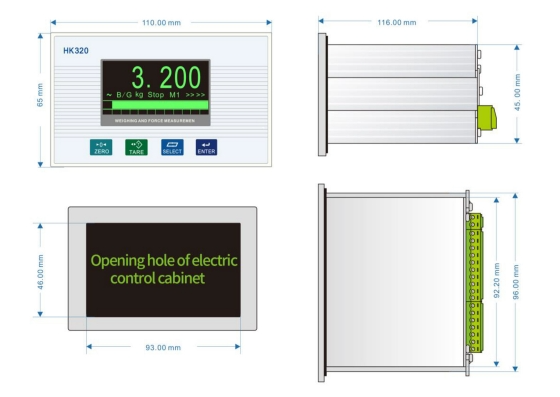

Dimensions(mm):
Information:
| Status Signal | Description |
| ~ | Steady state symbol,on when dynamic,off when static |
| B/G | Gross weight |
| Net | Net weight |
| Kg | Unit:kg |
| Stop | Stop |
| Run | Run |
| On/Off | PROFIBUS,ONLINE,OFFLINE |
| >> | Fast feed |
| > | Slow feed |
