Truck Scale 20,30, 40,50,60t Canister Type Load Cell -B196
Product Description:
The B196 is intended for use in applications where high precise and
high load compression force measuement is required, for example,
bridge scales, truck scales and dynamic railroad scales. Crated in
17-4 PH stainless steel, it has a rigid and robust measuring body
with striking waterproof and anti-corrosion performance in the most
challenging environments. It comes in good self-centering with the
supporting hardwares to balance the movements. In addition, it is
equipped with 9m or 12m long optional armoured shielded cable to
offer additional protection.
Features & Applications:
Specifications:
| Capacity | 20,30, 40,50,60t |
|---|---|
| Rated output | 2.0±0.005%mV/V |
| Zero balance | ±0.1%F.S. |
| Non-linearity | ±0.03%F.S. |
| Hysteresis | ±0.03%F.S. |
| Repeatability | ≤0.03%F.S. |
Creep(30min) | ≤0.02%F.S. |
| Temperature effect on sensitivity | ±0.02%F.S./10℃ |
| Temperature effect on zero | ±0.02%F.S./10℃ |
| Input resistance | 700±5Ω |
| Output resistance | 700±3Ω |
| Insulation resistance | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
Maximum excitation | 15V |
| Compensated temp. range | -10~50℃ |
| Operation temp. range | -20~60℃ |
| Safe overload | 120%F.S. |
| Ultimate overload | 300%F.S. |
| IP class | IP68 |
| Cable size | Φ6×9000(12000)mm |
| Material | Stainless steel |

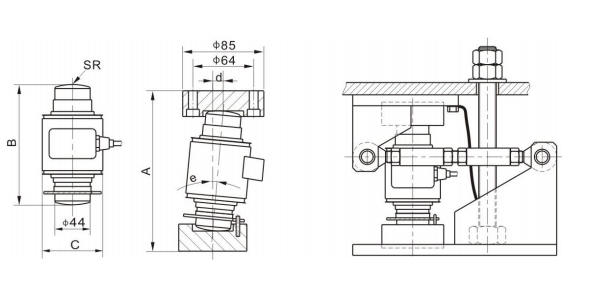

Dimension(MM):
| Capacity | Size mm | |||||
| t | A | B | d(max) | C | e(max) | SR |
| 20 | 200.0 | 150.0 | 13.0 | 76.0 | 5.0° | 130.0 |
| 30 | 200.0 | 150.0 | 13.0 | 76.0 | 5.0° | 160.0 |
| 40 | 200.0 | 150.0 | 13.0 | 76.0 | 5.0° | 180.0 |
| 50 | 260.0 | 210.0 | 11.0 | 88.0 | 3.0° | 220.0 |
| 70 | 260.0 | 210.0 | 11.0 | 88.0 | 3.0° | 220.0 |
Load Direction:
Wiring:
